What is VPN and How to config a VPN?

A Virtual Private Network (VPN) is a technology designed to enhance online security and privacy. By establishing a secure connection between your device and a VPN server, it encrypts your internet traffic, making it difficult for others to intercept or decipher your data.

Key Advantages of Using a VPN:

  1. Enhanced Privacy: A VPN hides your IP address and encrypts your online activities, protecting your personal information from being tracked by websites or third parties.

  2. Improved Security: It provides an extra layer of protection, particularly useful when connecting to public Wi-Fi networks, reducing the risk of data theft.

  3. Access to Restricted Content: With a VPN, you can bypass regional restrictions and access websites or services that may be unavailable in your current location.



Let's make it simple to understand-

Understanding VPNs: Essential Concepts and setup

Why Use a VPN?

Data security is vital for both organizations and individuals. The internet is inherently vulnerable to interception, meaning data sent between devices can be at risk. For instance, when accessing a site like https://networkfederation.blogspot.com/, the data exchanged can be exposed if it's not encrypted. Hackers might intercept unencrypted data, which is why securing it with a VPN is important.

Where Are VPNs Utilized?

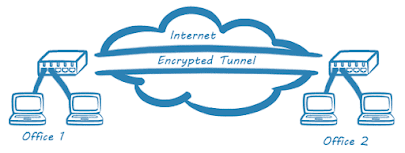

VPNs are particularly useful for safeguarding data transfers between different locations. For example, if you regularly send sensitive information between your home and office, a VPN can encrypt these transfers, protecting them from potential breaches. Businesses with multiple global locations also use VPNs to securely exchange and access information across their networks.

How Does a VPN Protect Your Data?

A VPN secures your data by encrypting it with advanced cryptographic algorithms. This process transforms plain text into a coded format that unauthorized users cannot read, thus ensuring that your data remains confidential.

What Do You Need for a VPN?

  • Personal Use: For a few PCs, software-based VPN solutions can be effective.

  • Business Use: Larger networks often require VPNs configured on routers, firewalls, and various software solutions.

Leading Network Device Vendors:

  • Routers: Cisco, Juniper, Arista, Aruba

  • Firewalls: Cisco, Palo Alto, Juniper, Check Point, FortiGate

  • Software-Based VPNs: StrongSwan, OpenVPN, OpenSwan

  • Client-Based: AnyConnect, FortiGate

  • Cloud Providers: Amazon Web Services, Microsoft Azure, Google Cloud Platform, Cloudflare



What is the requirement to configure Phase 1 & Phase 2?

VPNs can be set up using Command Line Interface (CLI) or Graphical User Interface (GUI), depending on the platform. The configuration process involves two main phases:

  1. Phase 1: IKE (Internet Key Exchange)

    • This phase establishes the VPN tunnel and manages VPN traffic using parameters such as hash algorithms (e.g., SHA, MD5), authentication methods (e.g., PSK, certificates), and encryption algorithms (e.g., DES, AES). Diffie-Hellman (DH) groups are also defined to ensure secure key exchange.

  2. Phase 2: IPsec (Internet Protocol Security)

    • This phase focuses on creating a secure data path and encrypting the information. Key parameters include encapsulation methods (e.g., Tunnel, Transport), encryption types (e.g., DES, AES), and hashing algorithms (e.g., SHA, MD5). Perfect Forward Secrecy (PFS) groups are used to enhance security.

VPN Output Example: We already setup a tunnel and below are the parameters used for the tunnel.

  • Phase 1 (IKEv2):

    • Tunnel ID: 123

    • UDP Source Port: 500

    • UDP Destination Port: 500

    • Remote Authentication Mode: Pre-shared Keys

    • Local Authentication Mode: Pre-shared Keys

    • Encryption: AES256

    • Hashing: SHA1

    • Rekey Interval: 86400 seconds

    • Rekey Time Left: 68634 seconds

    • PRF (Pseudorandom Function): SHA1

    • DH Group: 5

  • Phase 2 (IPsec):

    • Tunnel ID: 123

    • Local Address: 10.X.X.0/255.252.0.0

    • Remote Address: 192.168.X.0/255.255.255.0

    • Encryption: AES256

    • Hashing: SHA256

    • Encapsulation: Tunnel

    • PFS Group: 14

    • Rekey Interval: 28800 seconds

    • Rekey Time Left: 23662 seconds

    • Idle Timeout: 30 minutes

    • Idle Timeout Left: 29 minutes

    • Bytes Transmitted: 1762413143

    • Bytes Received: 924896354

    • Packets Transmitted: 4775390

    • Packets Received: 4640717


This version provides a clear and concise overview of VPN concepts and configurations, tailored to be easily understood.
